Slim MPO Module

Slim Type 12-Core MPO Cassette

Plan a slim modular MPO-to-LC transition cassette around the fiber type, connector interface, port mapping, enclosure fit, and required quantity before quotation.

Request Module Configuration Send Fiber Mapping and Quantity

Slim modular formatDesigned for cassette-based fiber transition and structured patching layouts.

Configuration planningConfirm fiber type, MPO interface, LC interface, mapping, and polarity at quotation.

Documented example12-fiber MPO to 12 LC through six duplex LC ports, subject to quotation confirmation.

Slim 12-core MPO cassette with aqua OM3 LC front adapters — OM3 configuration view with aqua LC front adapters.

Slim 12-core MPO cassette with violet OM4 LC front adapters — OM4 configuration view with violet LC front adapters.

Slim 12-core MPO cassette with blue OS2 LC UPC front adapters — OS2 single-mode configuration view with blue LC/UPC front adapters.

Slim 12-core MPO cassette with green OS2 LC APC front adapters — OS2 single-mode configuration view with green LC/APC front adapters.

Image 1 of 4

Configuration and Specification Scope

Product format	Slim modular cassette for transitioning a pre-terminated MPO connection to equipment-side LC connectors.
Documented configuration example	One 12-fiber MPO male input to 12 LC connectors presented through six duplex LC adapters. Confirm the required connector gender, interface, mapping, and polarity at quotation.
Represented fiber options	The supplied views represent OM3, OM4, OS2 LC/UPC, and OS2 LC/APC configurations. Final availability and exact build must be confirmed for the quotation.
Port presentation	Labelled front ports and a modular cassette format support structured connection planning; confirm the requested port identification and enclosure fit.
Performance and compliance	Insertion loss, return loss, operating conditions, polarity, test requirements, and compliance documents are quotation-stage confirmation items for the exact requested build.

Applications

Structured fiber transition

Use a modular cassette where an MPO backbone connection must be presented as LC equipment-side connections after the exact mapping is confirmed.

High-density distribution planning

Supports cassette-based patching layouts in data center, telecom, and network-room environments where module fit and interface selection are planned together.

Application diagram showing an MPO cassette linking backbone cabling to LC equipment connections — Example end-to-end topology supplied for application context; confirm the project-specific interfaces and mapping.

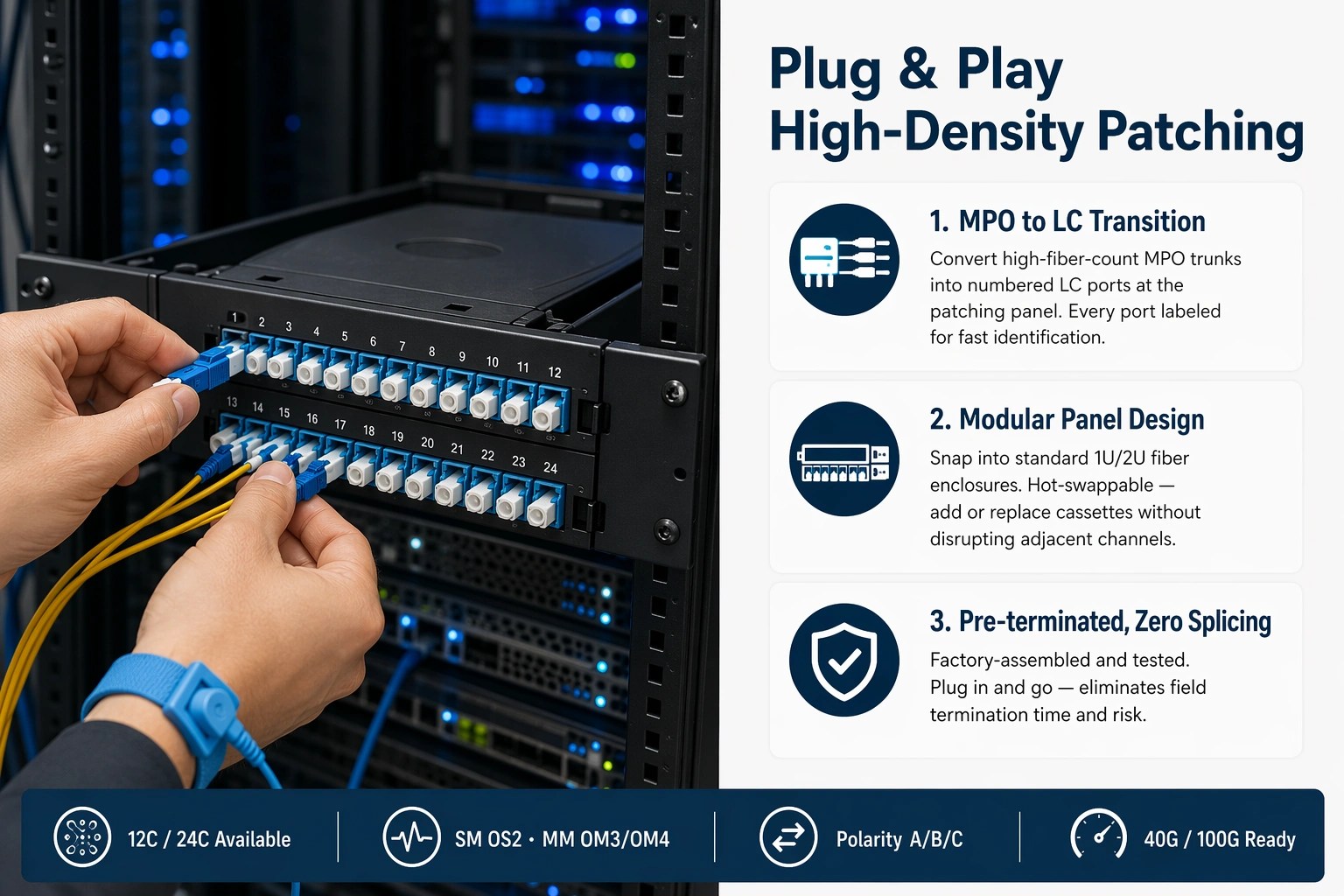

Application graphic showing slim MPO cassette modules in a high-density fiber patching layout — Example high-density patching context; embedded graphic labels are illustrative and not fixed product specifications.

RFQ Information

Send configuration requirements

Fiber type: OM3, OM4, or OS2
MPO/MTP interface and connector gender
LC/UPC or LC/APC equipment-side interface
Fiber mapping, polarity, and port-label requirements

Confirm project context

Target enclosure or panel and module-fit constraints
Required quantity and destination
Requested test records or compliance documents
Any drawing, sample, or ordering reference available for review

Prepare a Slim MPO Module RFQ

Send the fiber type, MPO and LC interfaces, mapping and polarity requirements, enclosure fit, quantity, and requested documentation for configuration review.

Request Configuration Review
